Flux Puck Starter Kit

The Flux Puck Starter Kit includes the following:

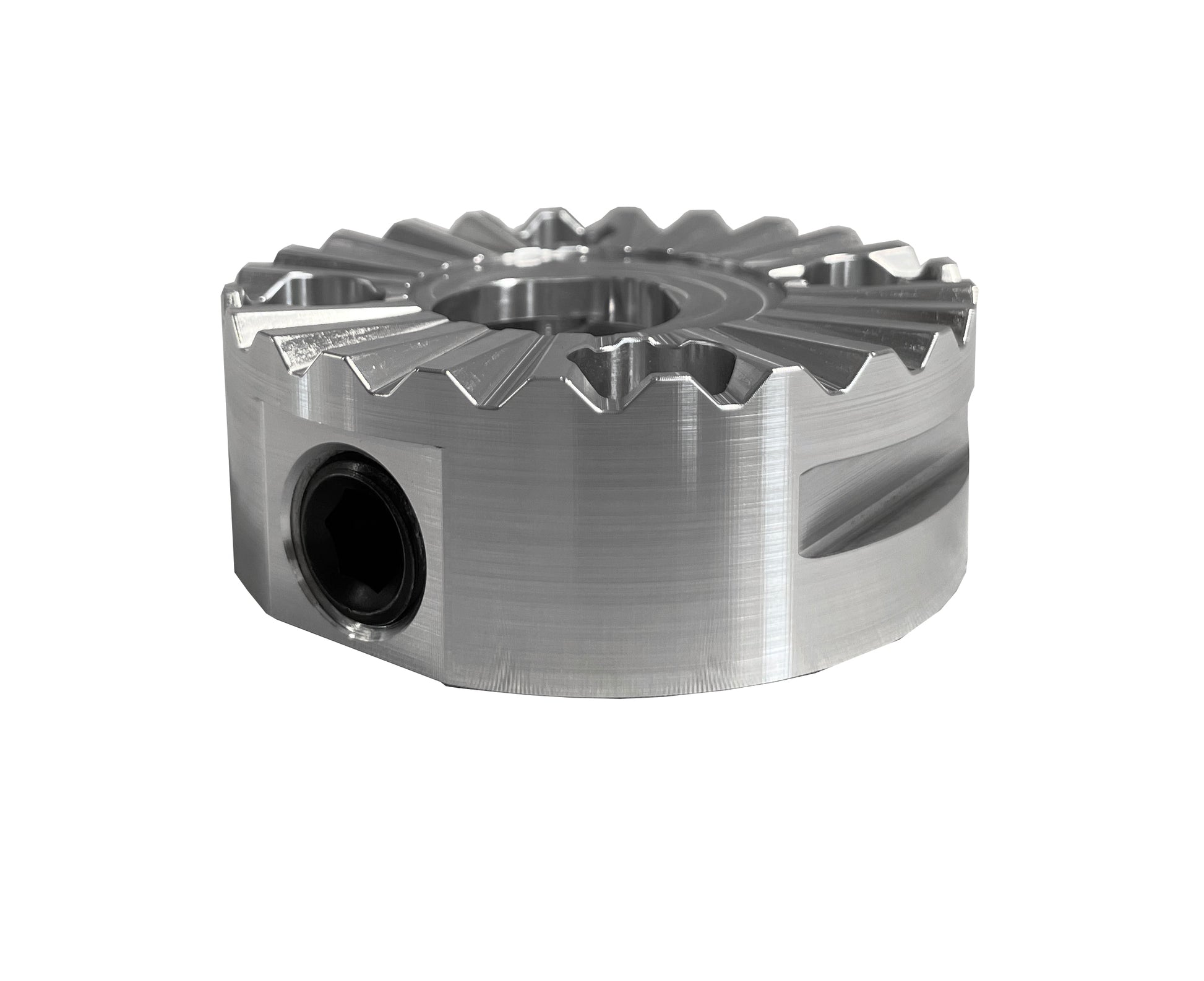

• (1) Flux Puck Base

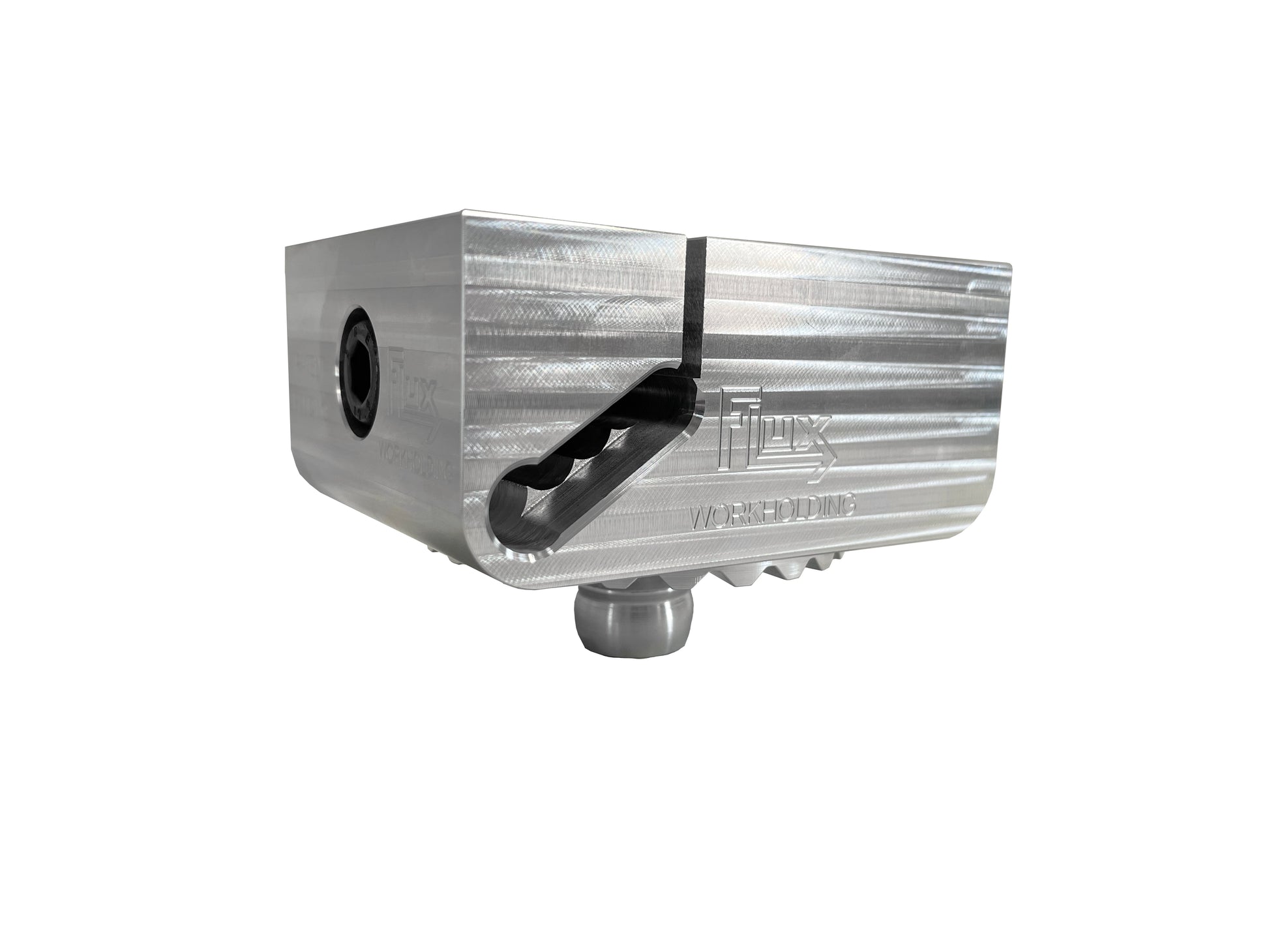

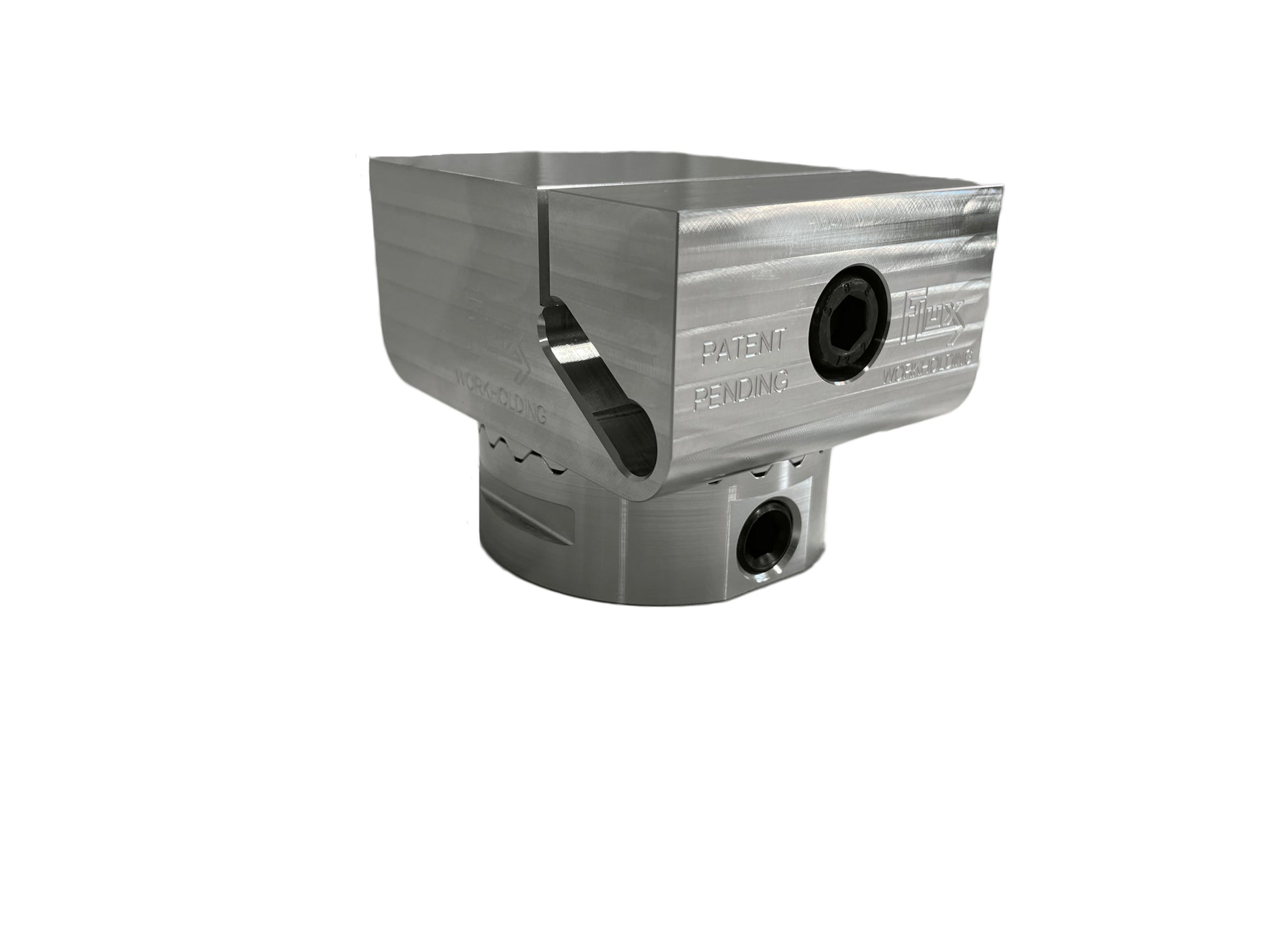

• (1) Single Station Vise 75mm X 100mm

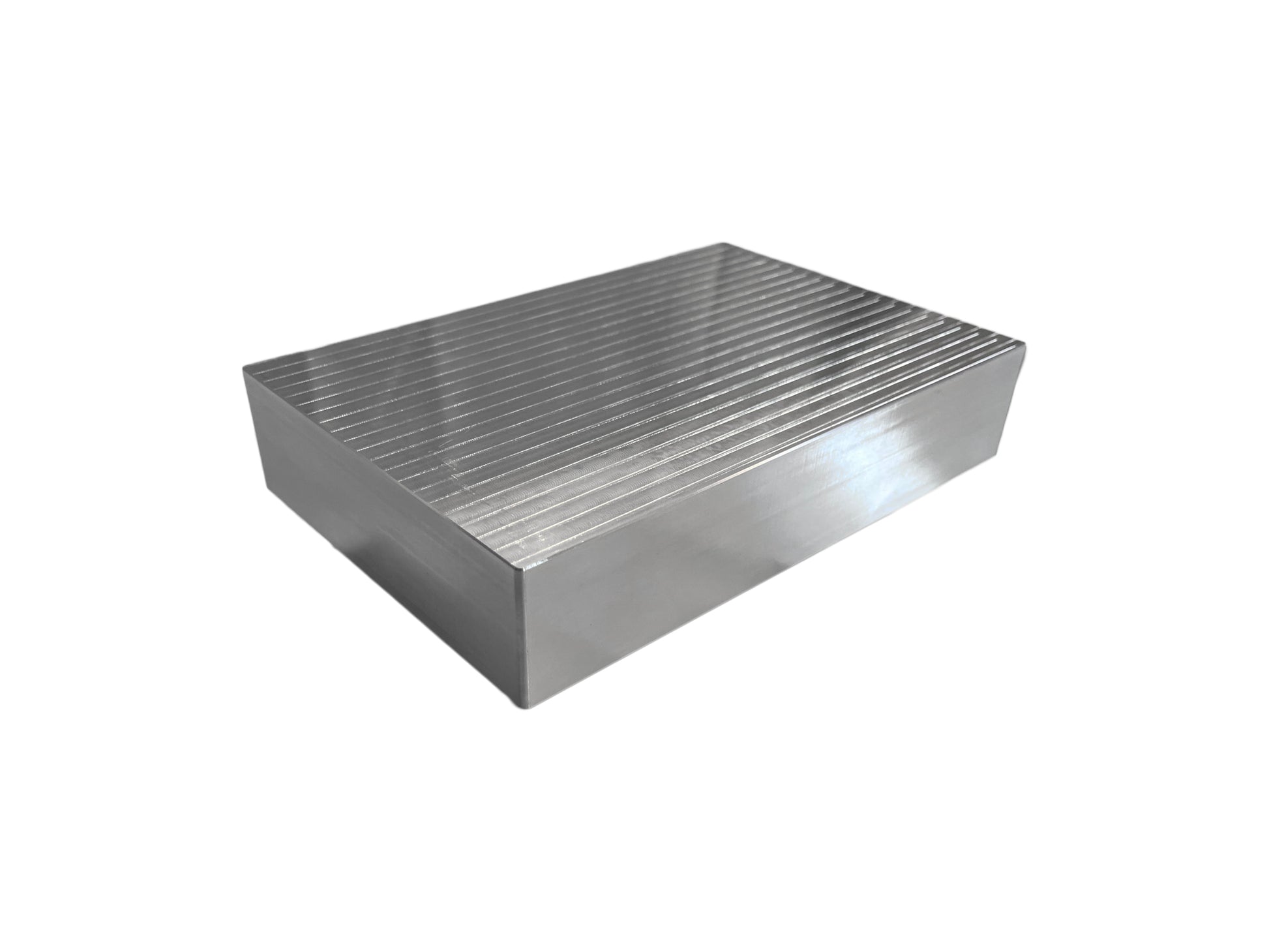

• (1) Pallet 100 mm X 150 mm
• Includes pullstuds and all necessary hardware.

Choose which mounting pattern on the Puck Base will work best for your machine:

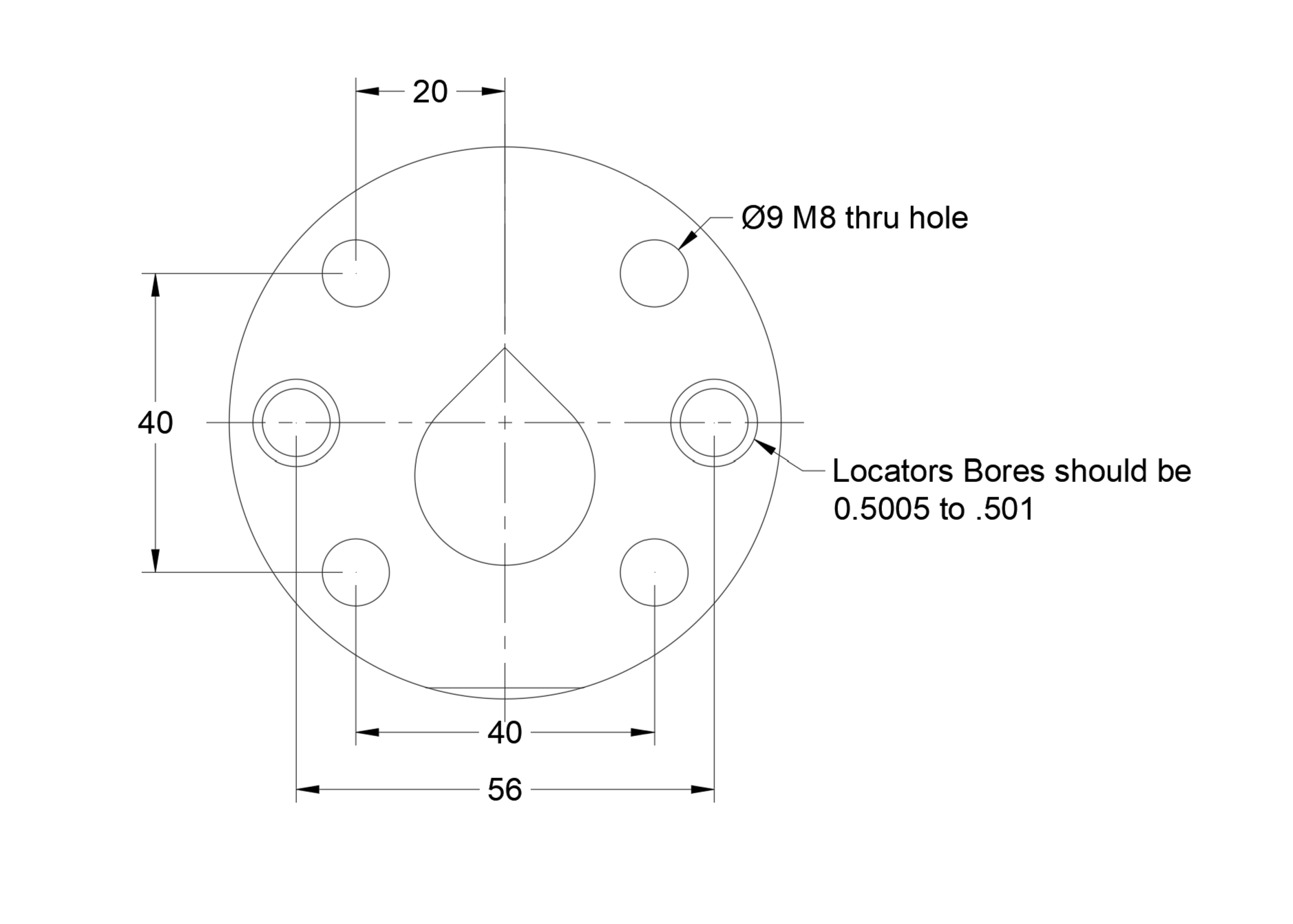

• Standard: 4x M8 bolt pattern (40mm X 40m), with 2 locator studs

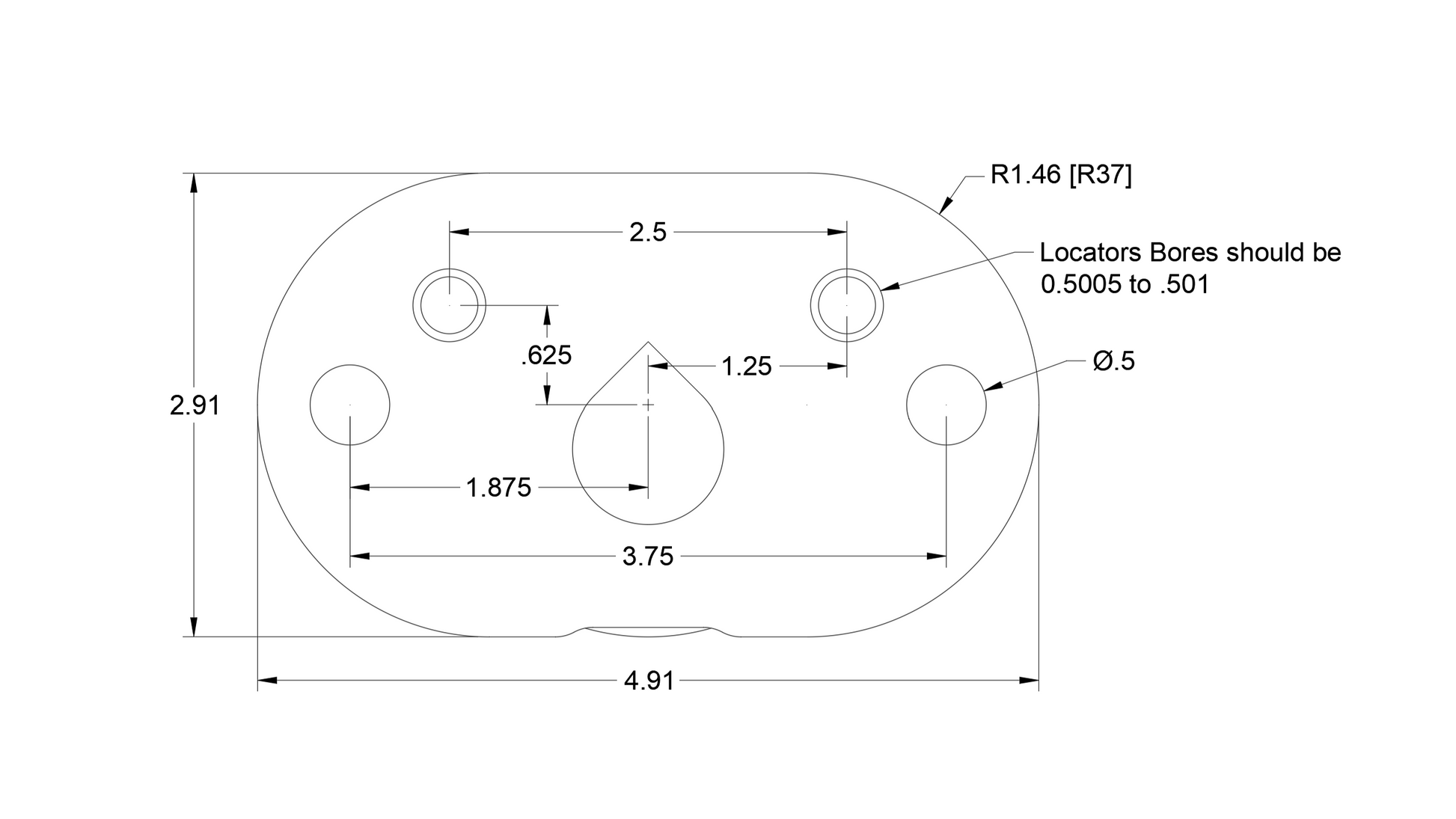

• SMW Compatible: 2x 1/2"-13 bolts, with 2 locator studs
• Lang 52mm Compatible: works with Lang/5th Axis style 52mm spaced pull studs

The bases are available in either 6061 Aluminum or 4140PH. The aluminum bases typical lifespan can be about 1,500 cycles before, while steel bases will last to 10,000 cycles or more.

Click here to learn more.

 Download Solid Models

Flux Puck Base (STEP)

Flux Puck Base Lang 52mm Solid Model (STEP)

VISE 75X100 Single Station (STEP)

Pallet 100X150 (STEP)

Mounting Example with Base and Vise (STEP)

Puck Base Mount Dimensions (PDF)

SMW Puck Base Mount Dimensions (PDF)
