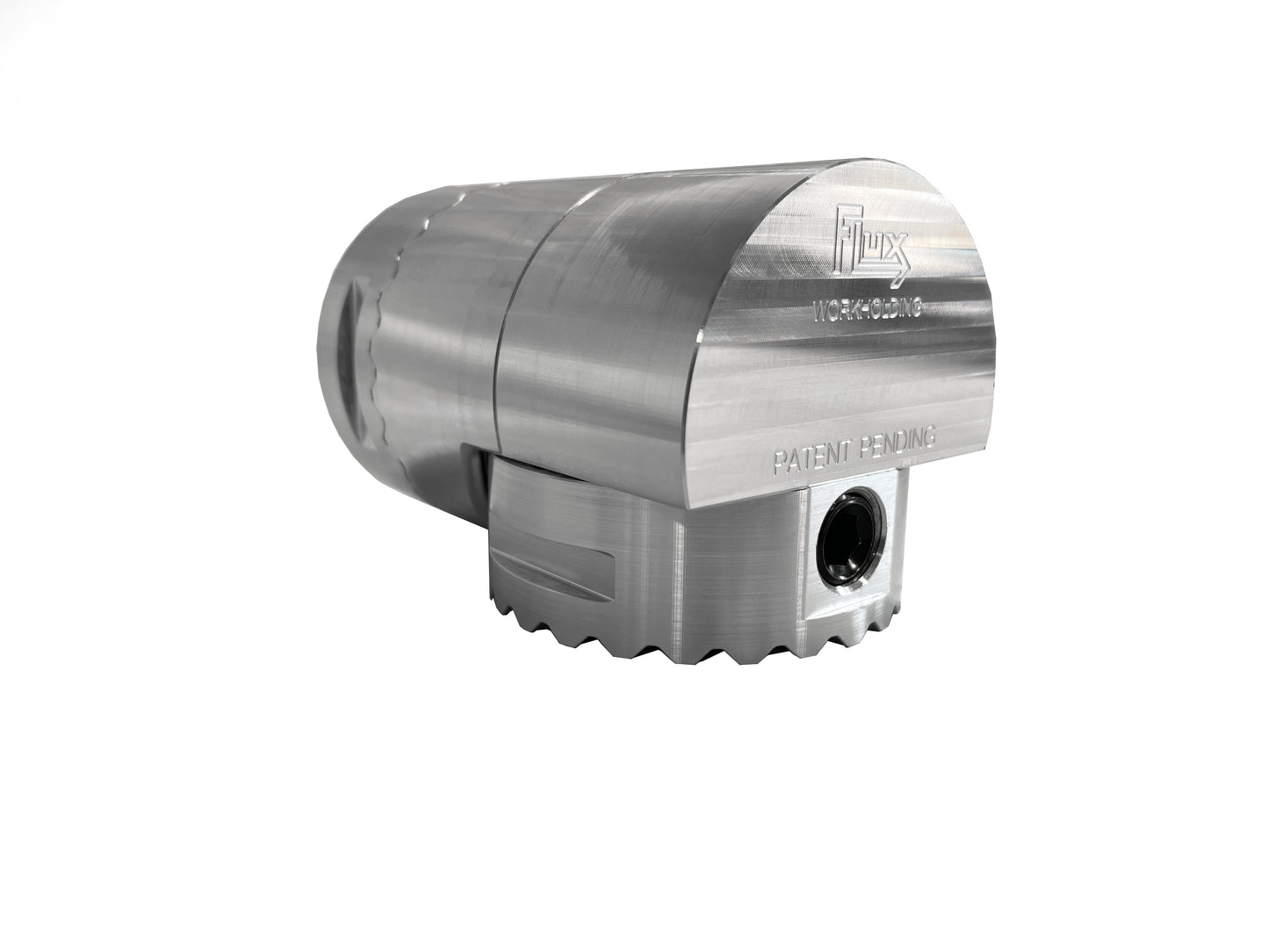

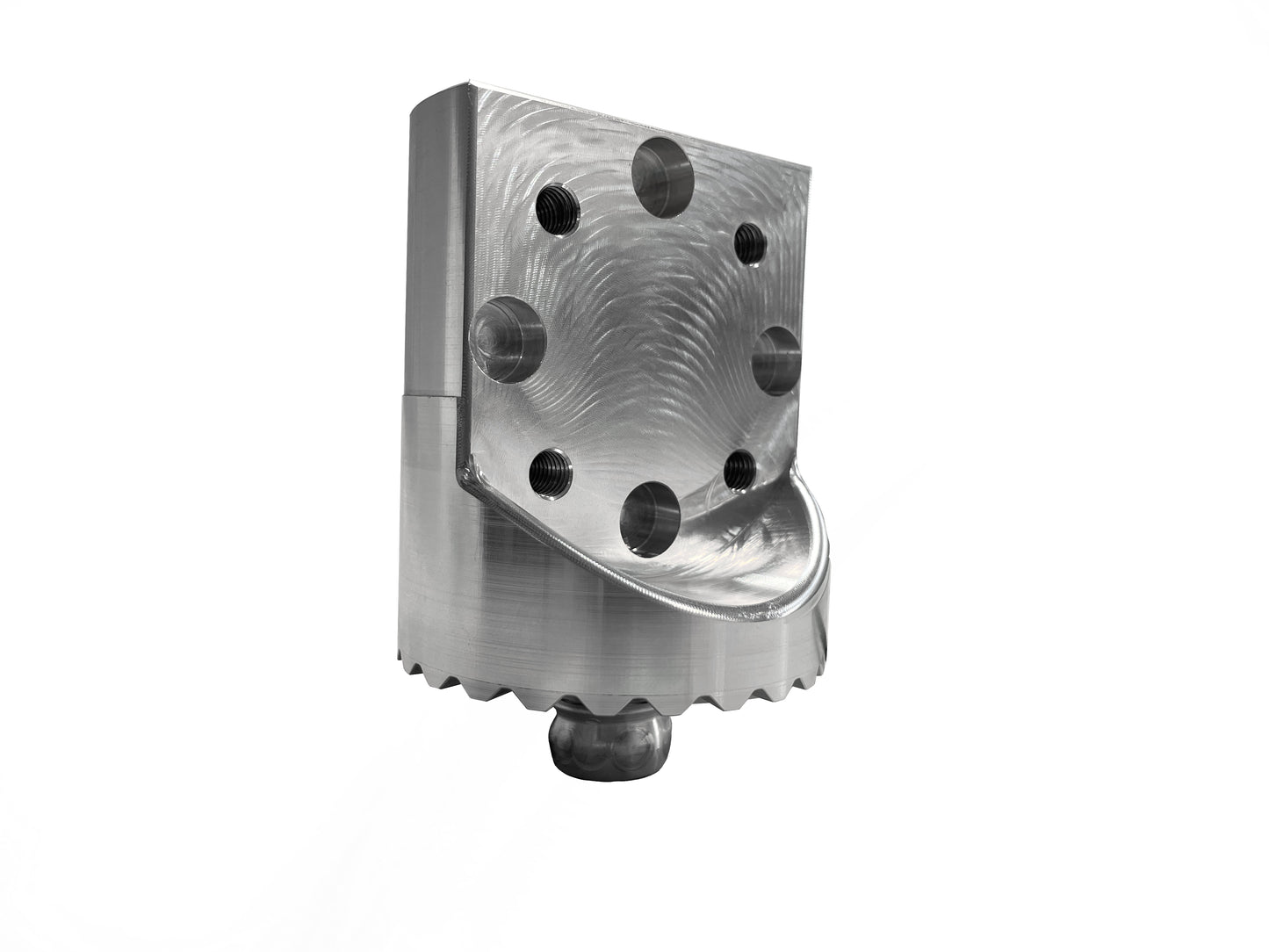

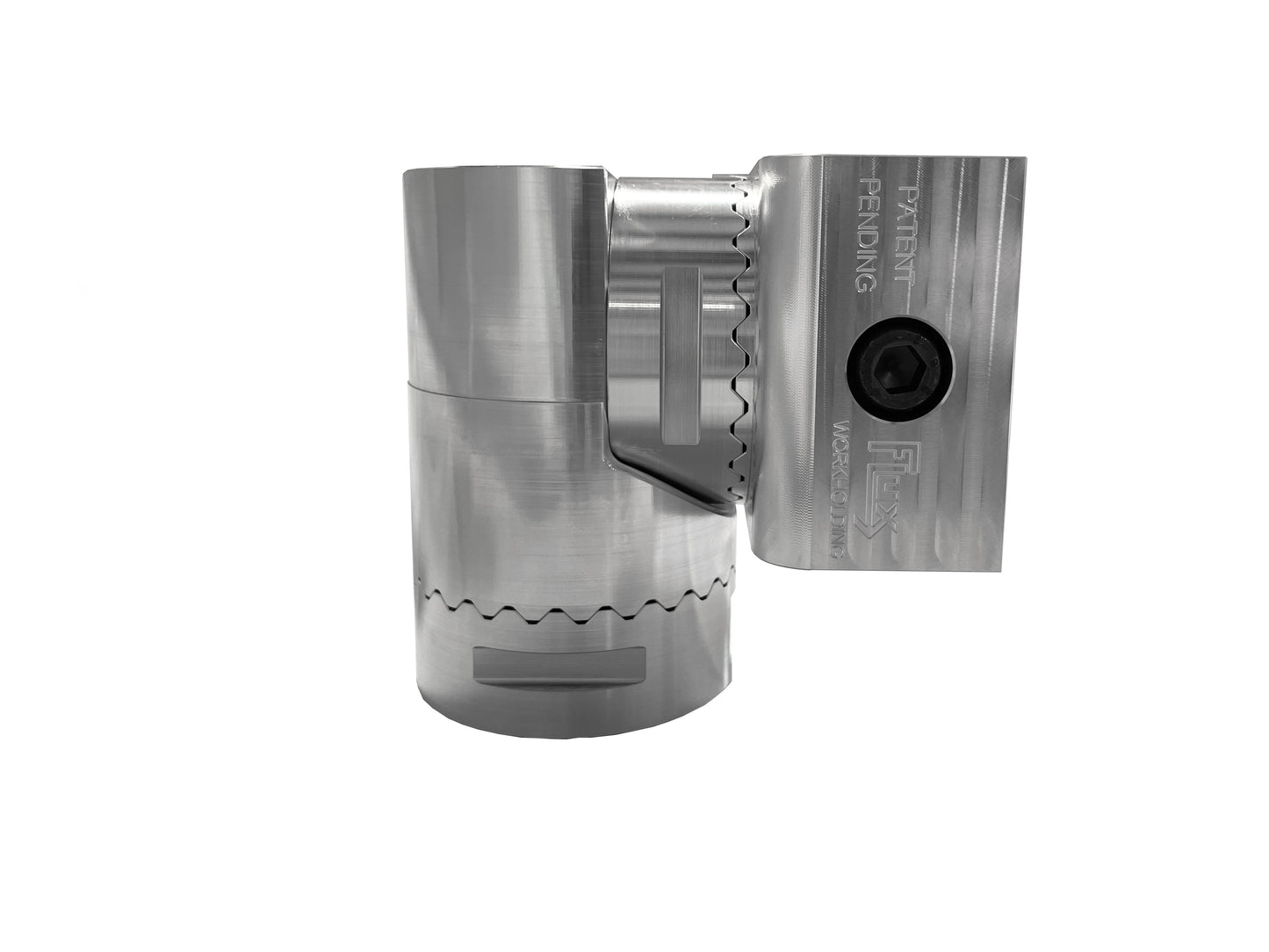

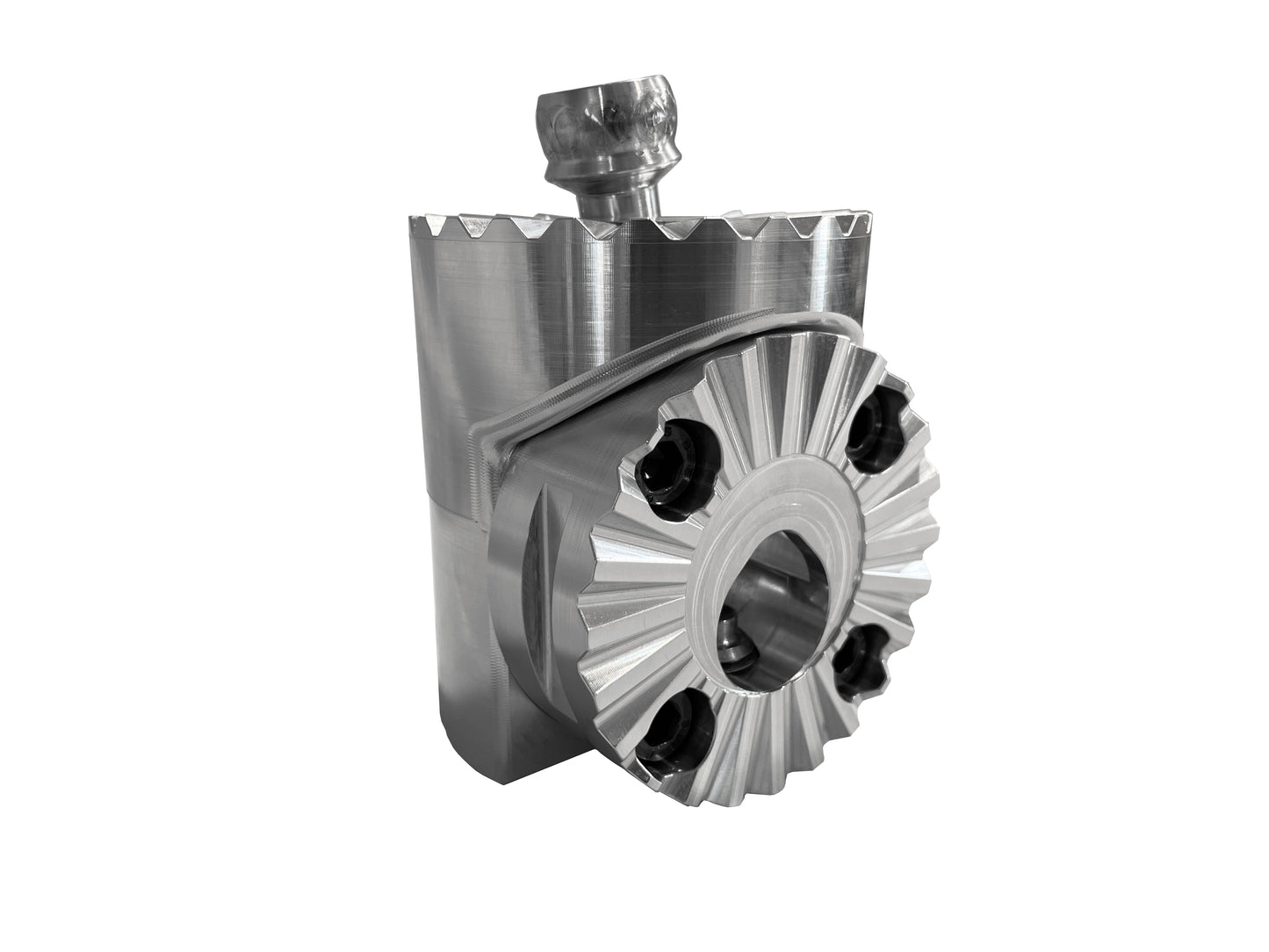

4th Axis Converter:With a Flux Puck installed onto the converter, you can access the sides of your part in increments of 15 degrees. You can think of it as a 90 degree angle plate that you can swap in seconds.
(1) 4th Axis Converter
(2) Flux Pucks

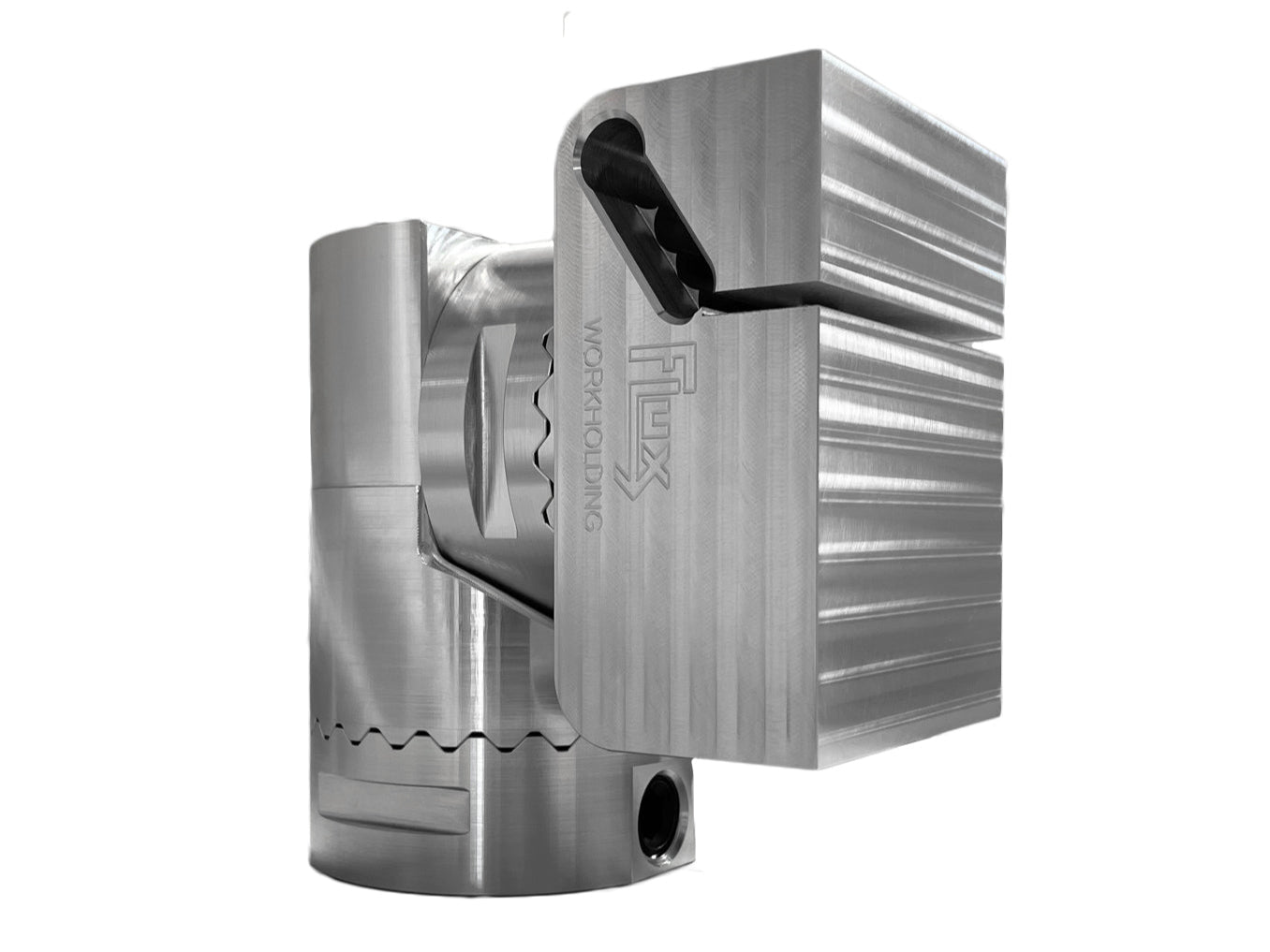

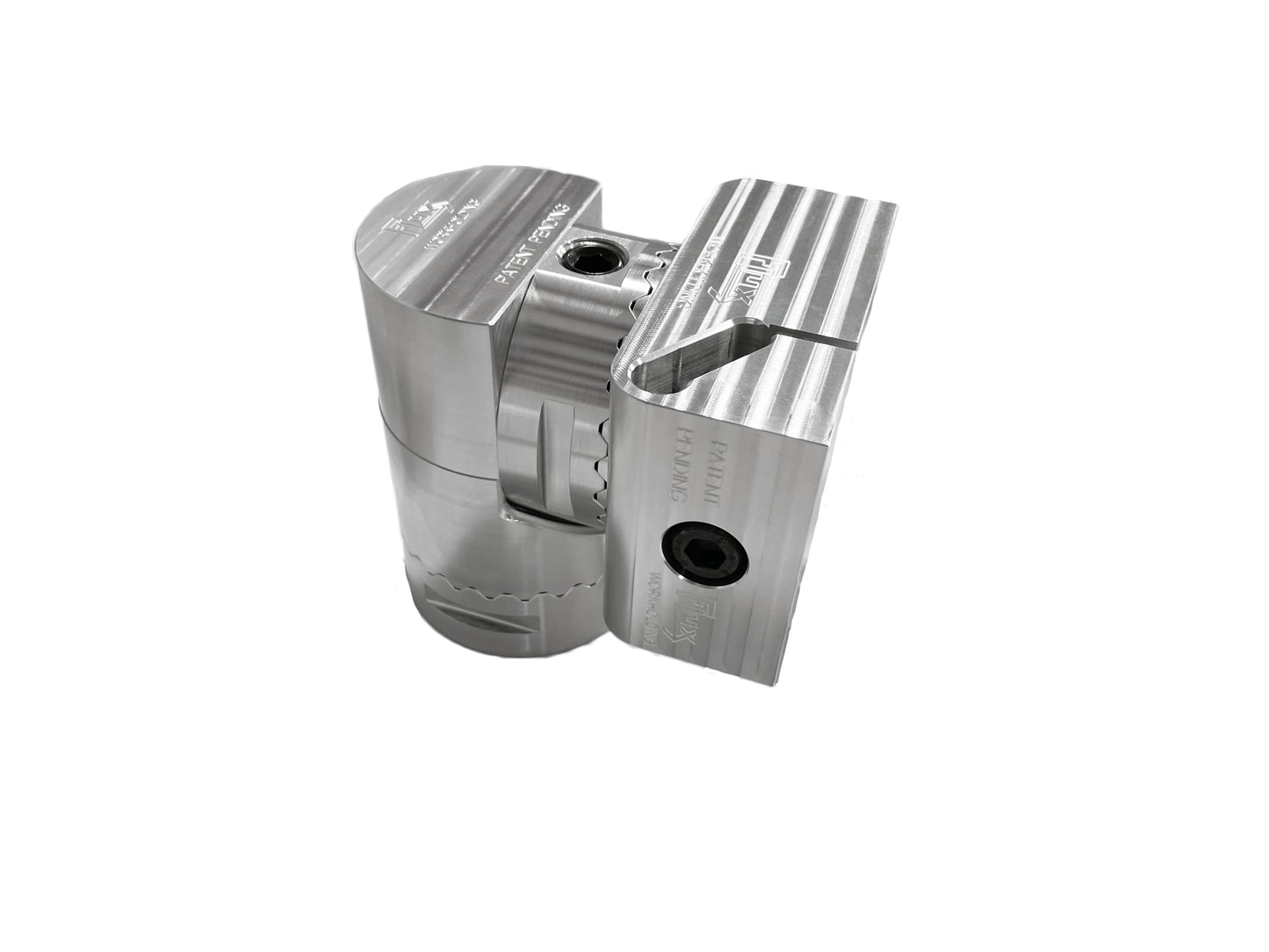

(1) Single Station Vise 75mm X 100mm
Includes all necessary hardware.
Choose which mounting pattern on the Puck Base will work best for your machine:
Standard: 4x M8 bolt pattern (40mm X 40m), with 2 locator studs
SMW Compatible: 2x 1/2"-13 bolts, with 2 locator studs
Lang 52mm Compatible: works with Lang/5th Axis style 52mm spaced pull studs
The bases are available in either 6061 Aluminum or 4140PH. The aluminum bases typical lifespan can be about 1,500 cycles before, while steel bases will last to 10,000 cycles or more.
