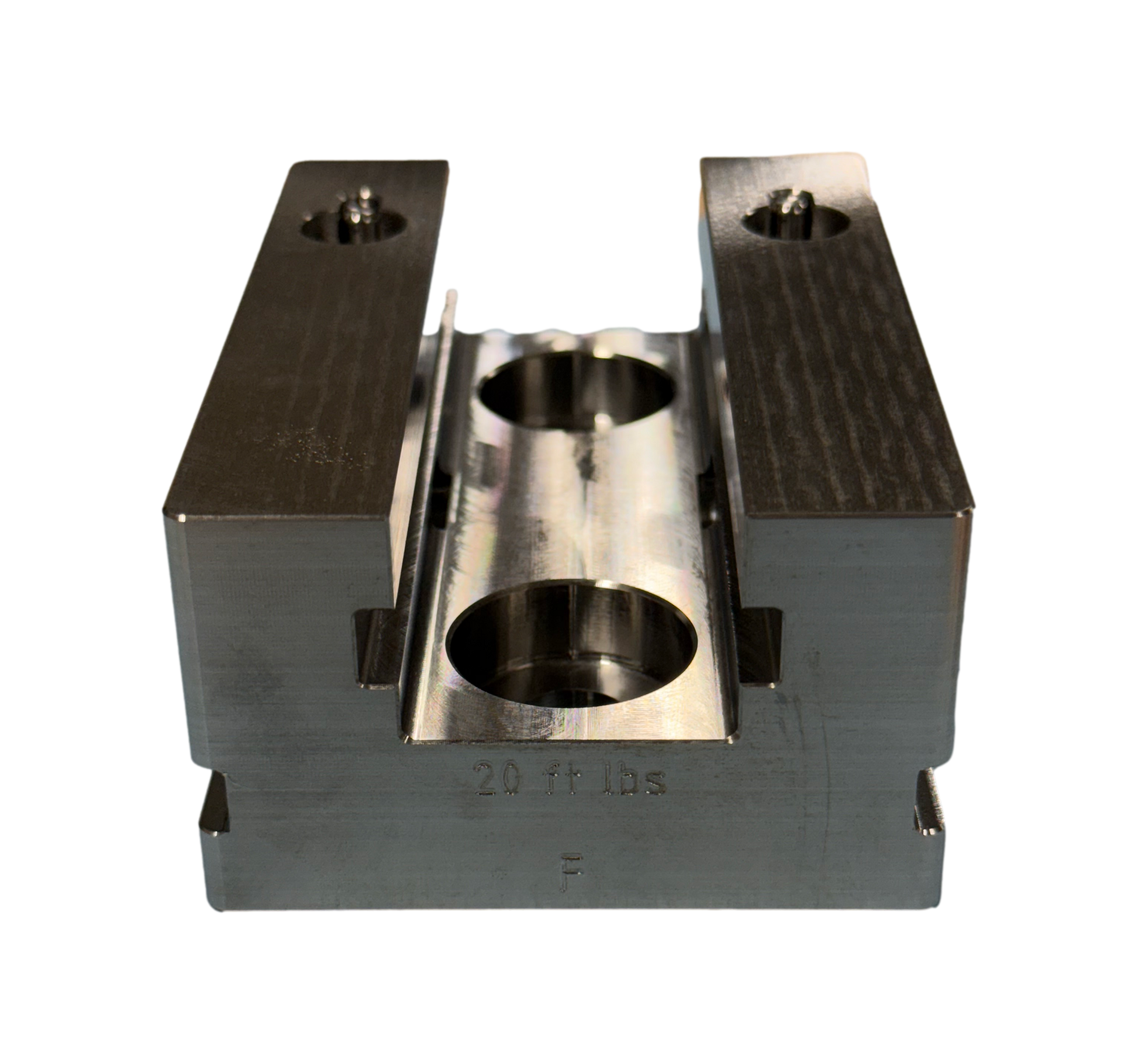

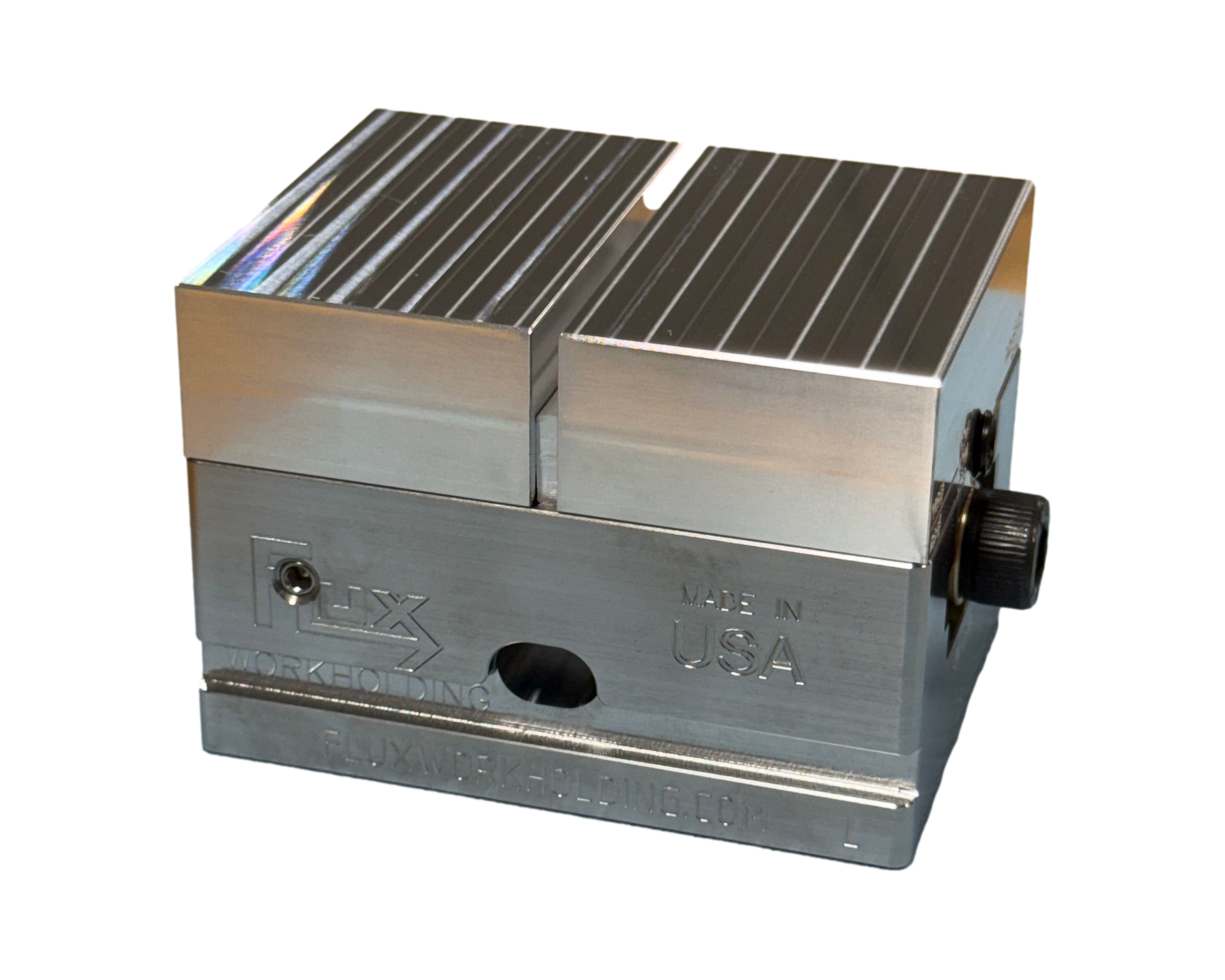

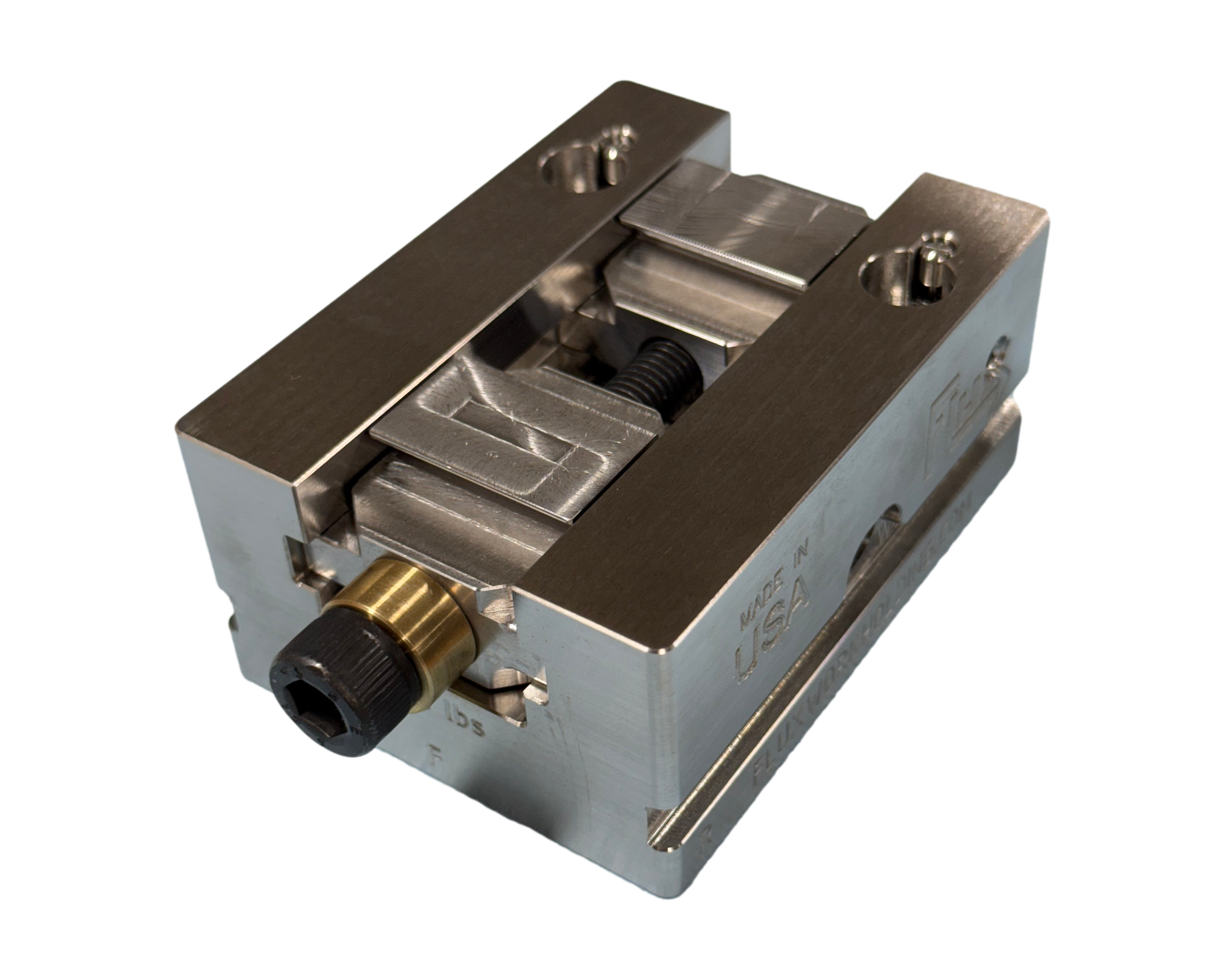

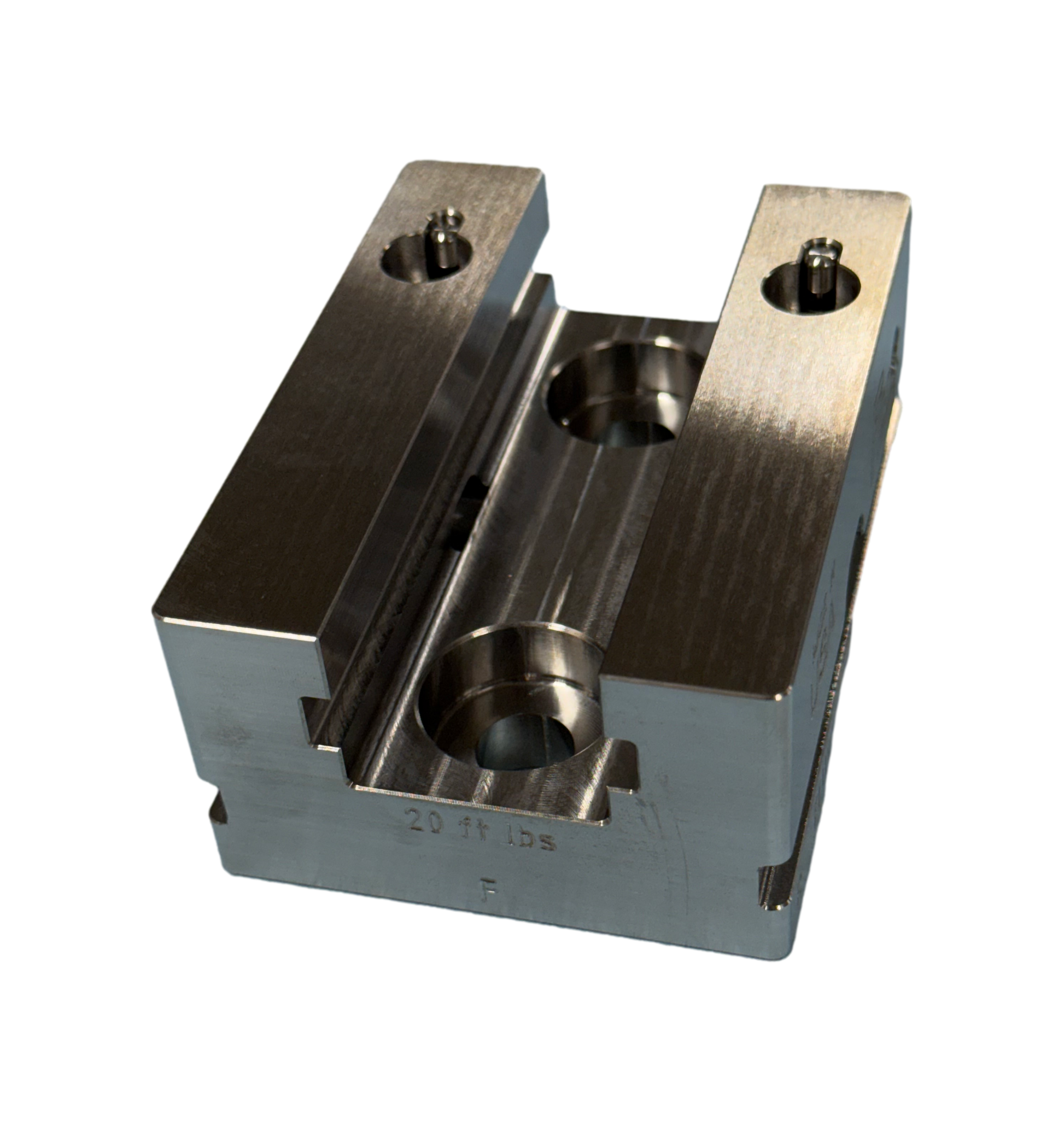

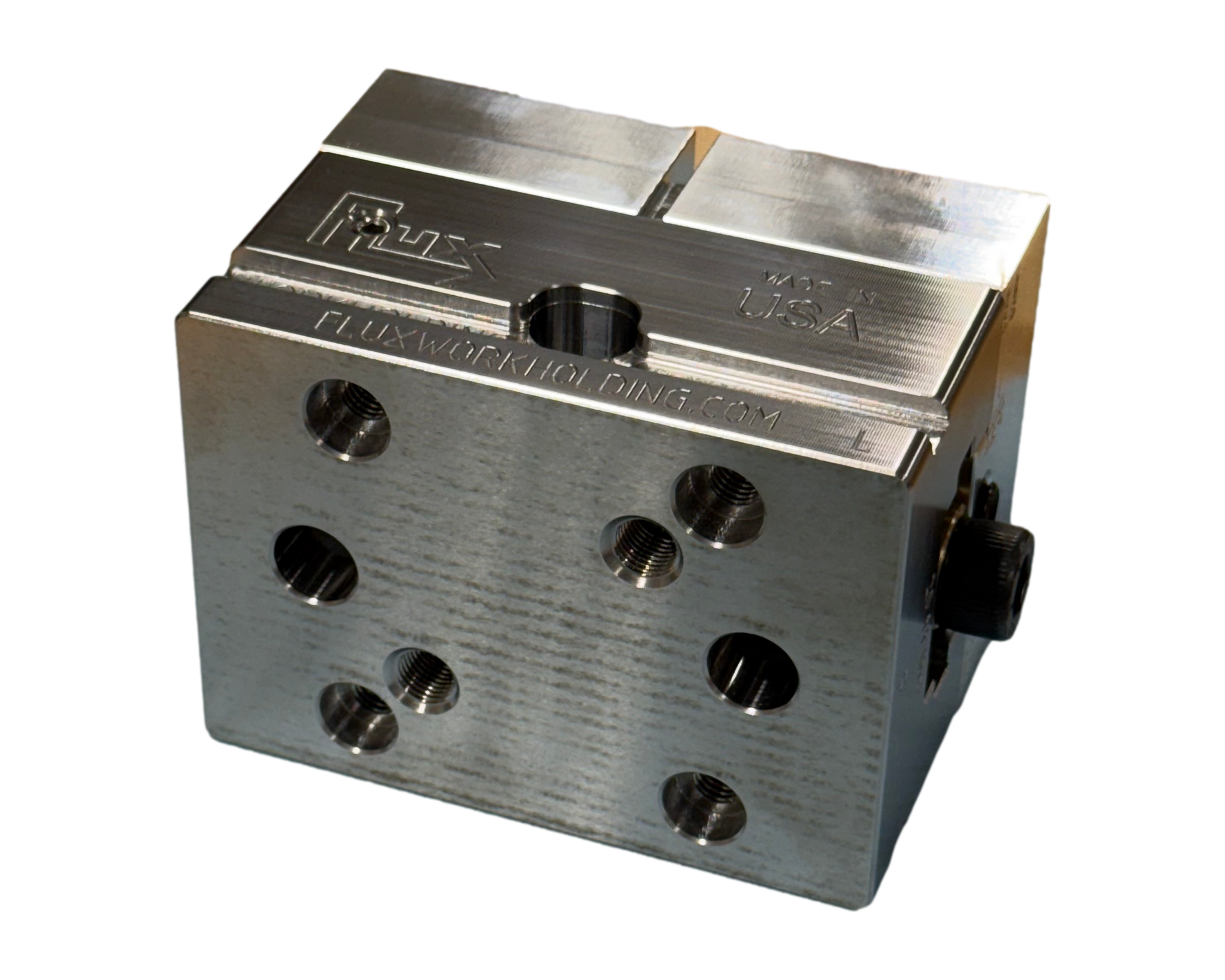

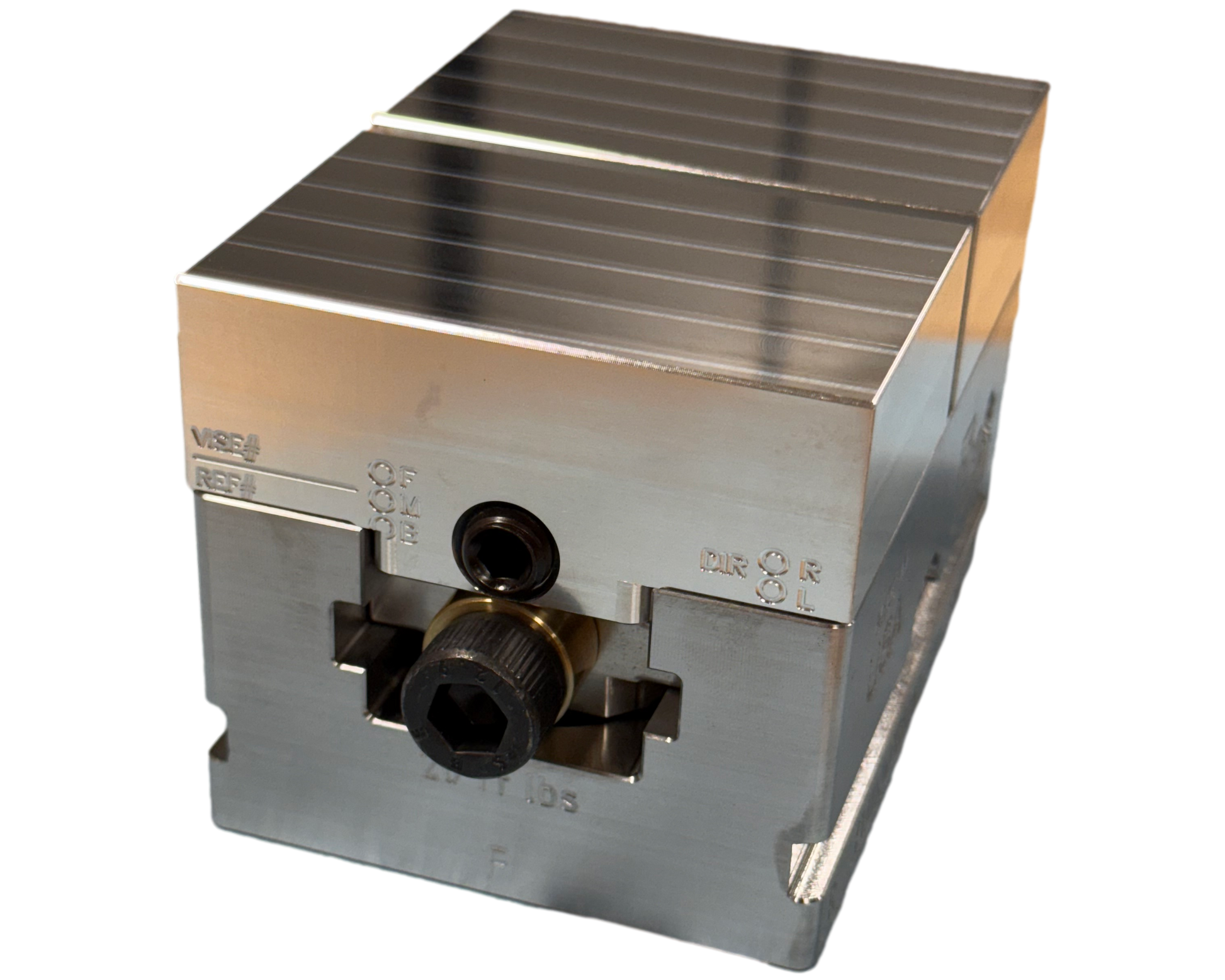

Flux 4" Vise - Starter Kit

Part Number: 235

The Flux Workholding Vise is a game-changer for production CNC machining of small parts. Experience the rare combination of repeatability, versatility, and affordability.

Made in USA.

Details:

Quick-Change Machinable Jaws (Flux Zero Clearance Coupling)

Single-Station Clamping

3"x4" Hardened Steel Body (4140 Steel HRC 30+)

Best-in-class Repeatability Enabling Re-Use of Soft jaws

Weighs about 6.25lbs fully assembled with 3" jaws and Lang 52mm pull studs

Compatible with all Flux Workholding Soft Jaws

Compatible with Saunders Machine Works Fixture Plates, Lang/5th Axis 52mm pull studs, as well as custom subplates/pallets

Optimized for High Density Fixturing Techniques

This Starter Kit includes:

Qty 1 - Flux Workholding 4" Vise

Qty 1 - 3" Soft Jaws Set

Qty 2 - Locating Studs

Qty 2 - 1/2-13 x 1 Button Head Cap Screw

Accessories:

If attaching directly to a t-slot table, use our table clamps.

Getting Started:

Download Solid Model (STEP)

Documentation
