DIY Puck Adapter

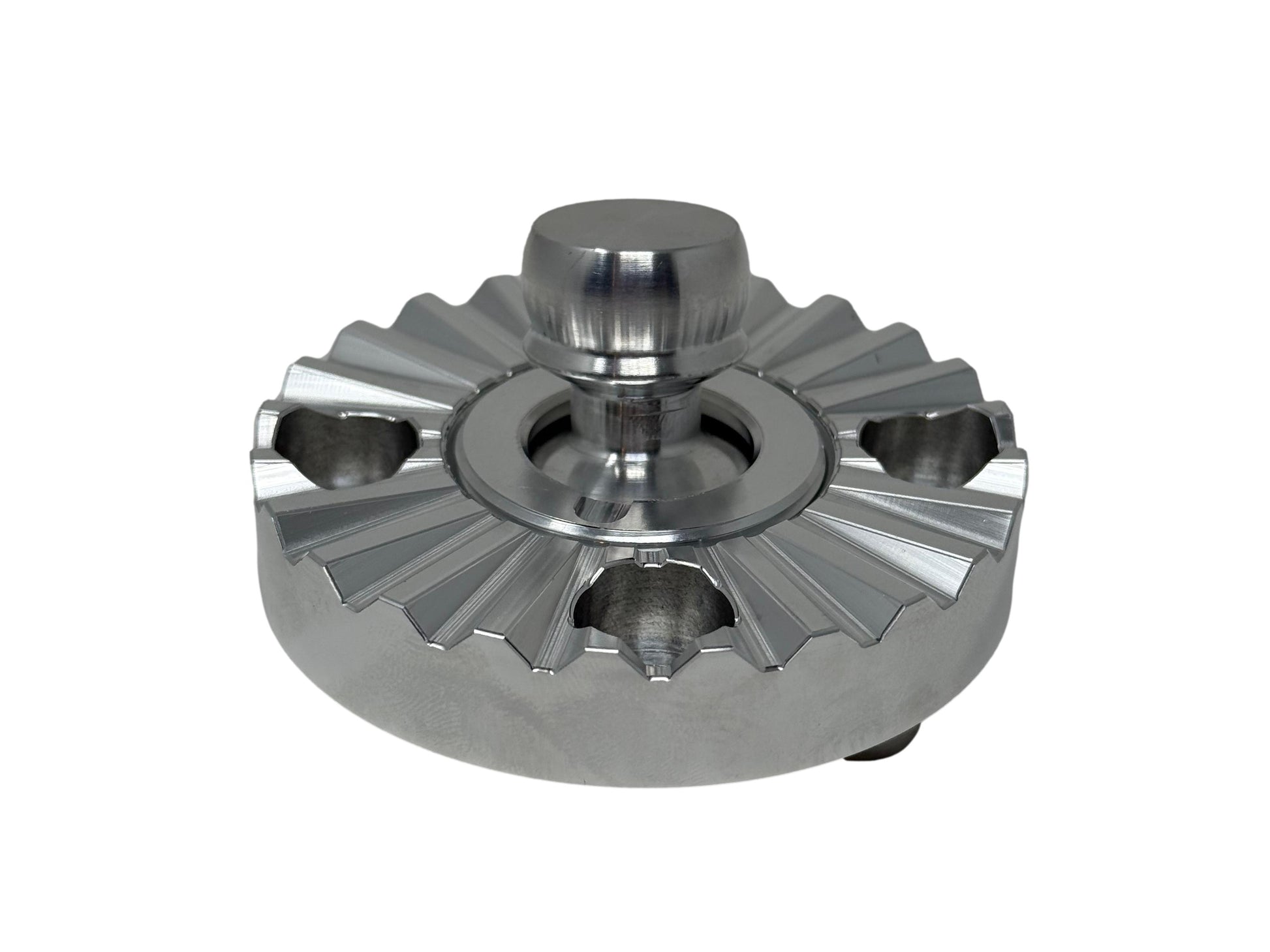

The DYI Puck Adapter can be used to turn any of your own pallets or fixtures into one that can attach to a Puck base.

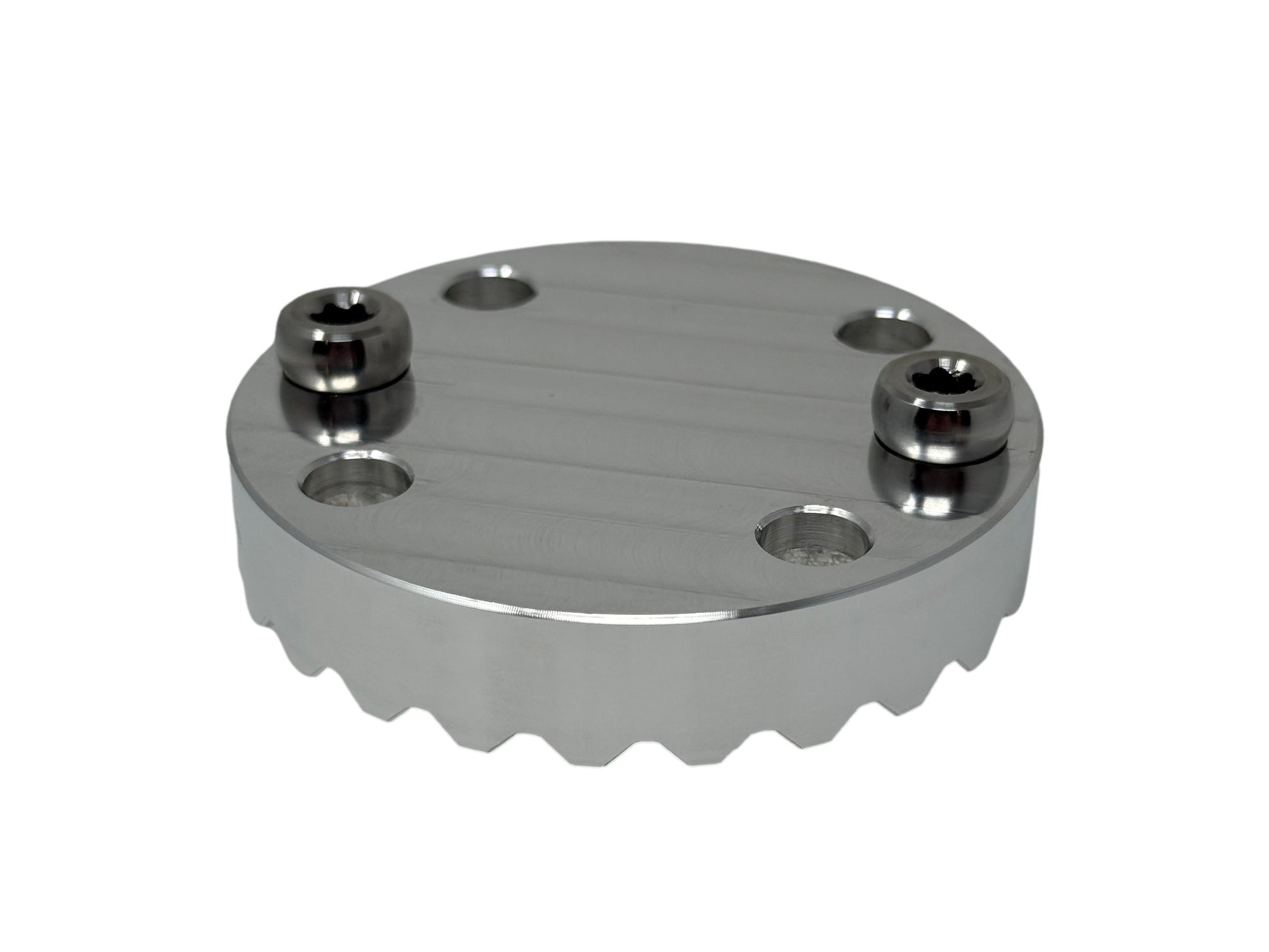

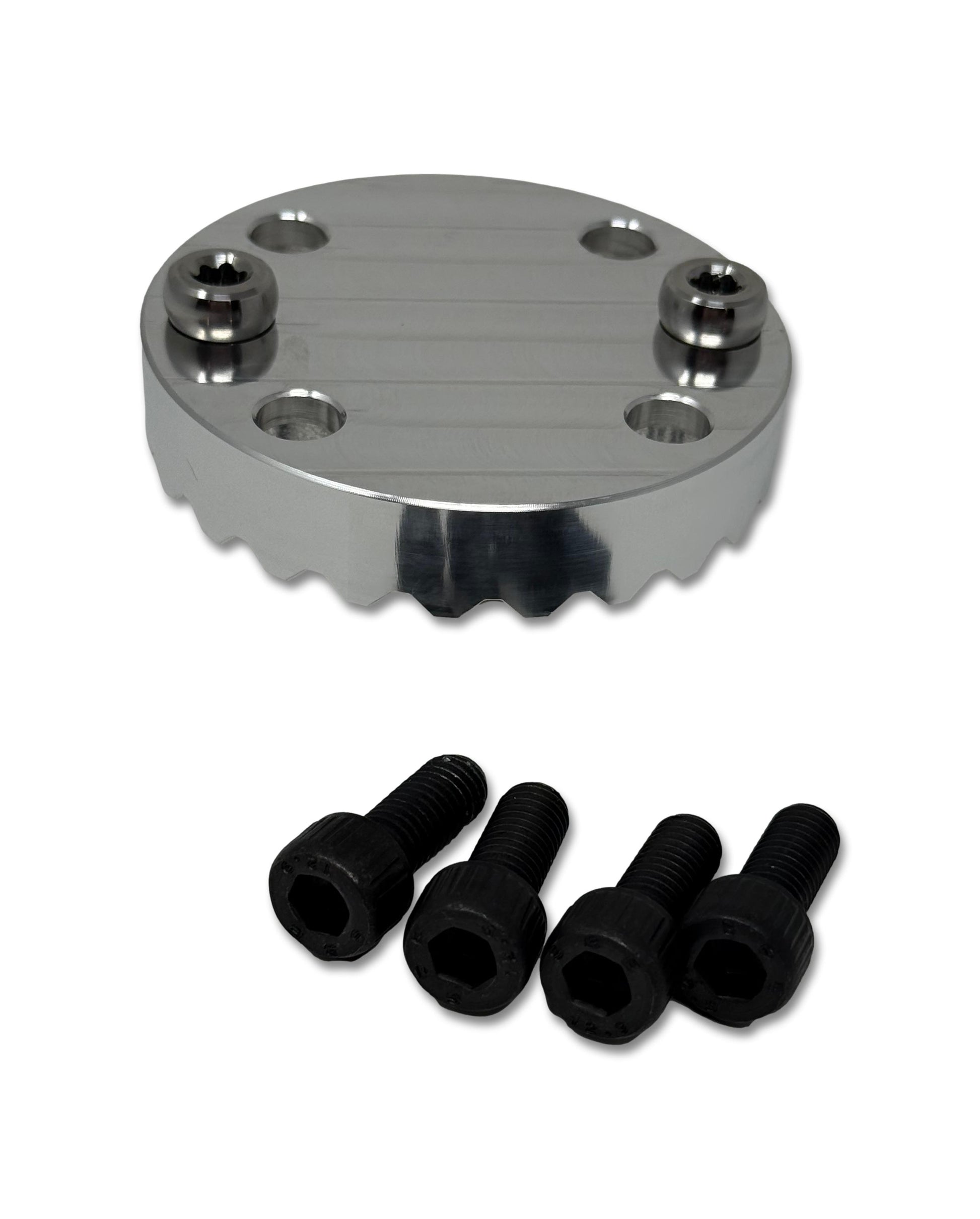

The adapter is made of 6061 Aluminum and can mount to any of your own fixtures using the included M8x20mm screws in a 40x40mm spacing. Included are 2 of our locating studs, which can be used to ensure precise locating when mounting. It is recommended to use holes at .5005"+0.0005-0 and about 0.3" deep.

Download Solid Model (STEP)
