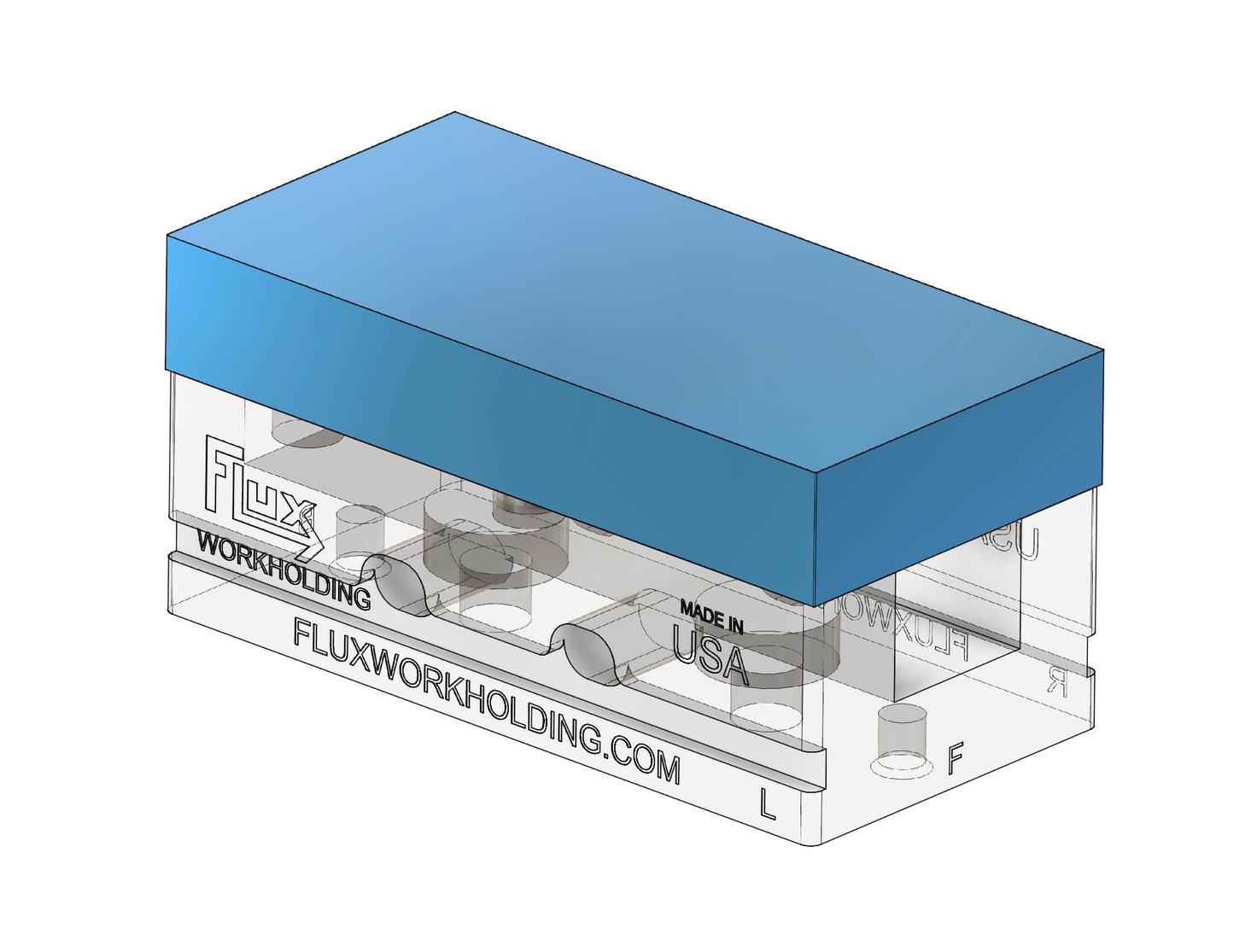

3" x 6" Pallet

This provides a blank 3 x 6 inch pallet canvas for any of your own custom fixturing. Machine it into any shape, mount additional hardware of tooling, whatever you need.

The pallet is 1 inch thick and the entire top surface can be safely machined up to 0.5” deep. You can go further if you are conscientious of where the 4 locator holes are located.

The pallet includes two options for where the locator studs are placed. By default, locator studs will be installed in the back position. This makes it so the pallet only has one way in which it can be mounted. It also includes center positions allowing the pallet to be reversible.

Includes everything you need to setup your Flux Workholding Vise with the pallet ready to go (vise not included!).

Included:

Qty 1 - 3x6 Pallet (6061-T6 Aluminum)

Qty 2 - Locating Stud (pre-installed)

Getting Started:

Download Solid Model (STEP)

Documentation
